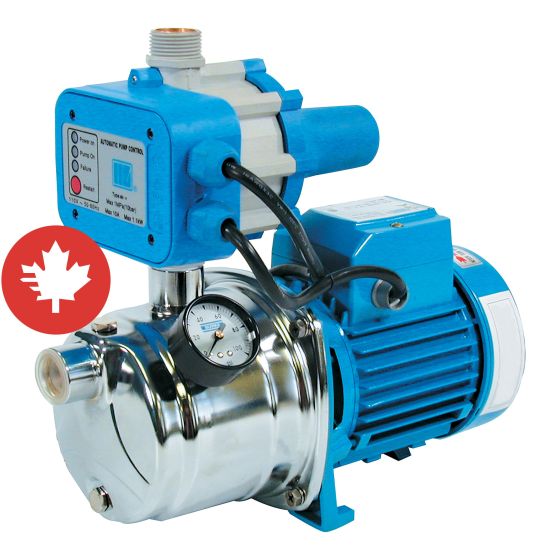

Powerful dual application pump system 3/4 hp
BMR Code
333-0364
Part number
506532SS
UPC
772910065324
This eletronic system eliminates the conventionnal tank and pressure switch to start and stop the pump.
*The price and inventory of products offered on the website may vary. The price may differ from an advertised price due to varying conditions in different markets, errors or situations beyond our control.
Powerful dual application pump system.
• Can be used as a shallow well jet pump with electronic control or to boost water pressure
• No need for a pressure switch and pressure tank
• The electronic control prevents the pump for running dry
• Eliminate rust and drink cleaner water with a stainless steel pump
• Recommended for residential use in homes, cottages or farms
• Maximum vertical lift of 25 ft. Built-in ejector
• High performance Noryl impeller
• Totally enclosed fan cooled motor, bearing, powered by a full-time run capacitor to eliminate starting wear vs regular motors
• Thermal and overload protection
• Large stainless steel corrosion-resistant body, easy to prime
• Built for an intermittent or a continuous use
• Easy to install, comes with 10-ft power cord
• Maximum pressure of 65 psi
• 1 in NPT suction and discharge
• 0-100 psi pressure gauge
• Capacity at 30 psi: 897 US GPH/5 ft; 749 US GPH/10 ft; 638 US GPH/15 ft; 555 US GPH/20 ft; 472 US GPH/25 ft
• Not recommended for sand point applications
• In a pressure boosting application, a water pressure regulator must be installed before the inlet of the pump if the source pressure exceeds 25 psi.
Brand | BURCAM |
---|---|
Capacity | 60 Hz |
Gallons per hour | 896 |
Gallons per minute | 15 |
Liters per hour | 3395 |
Liters per minute | 57 |
Power | 3/4 hp |
