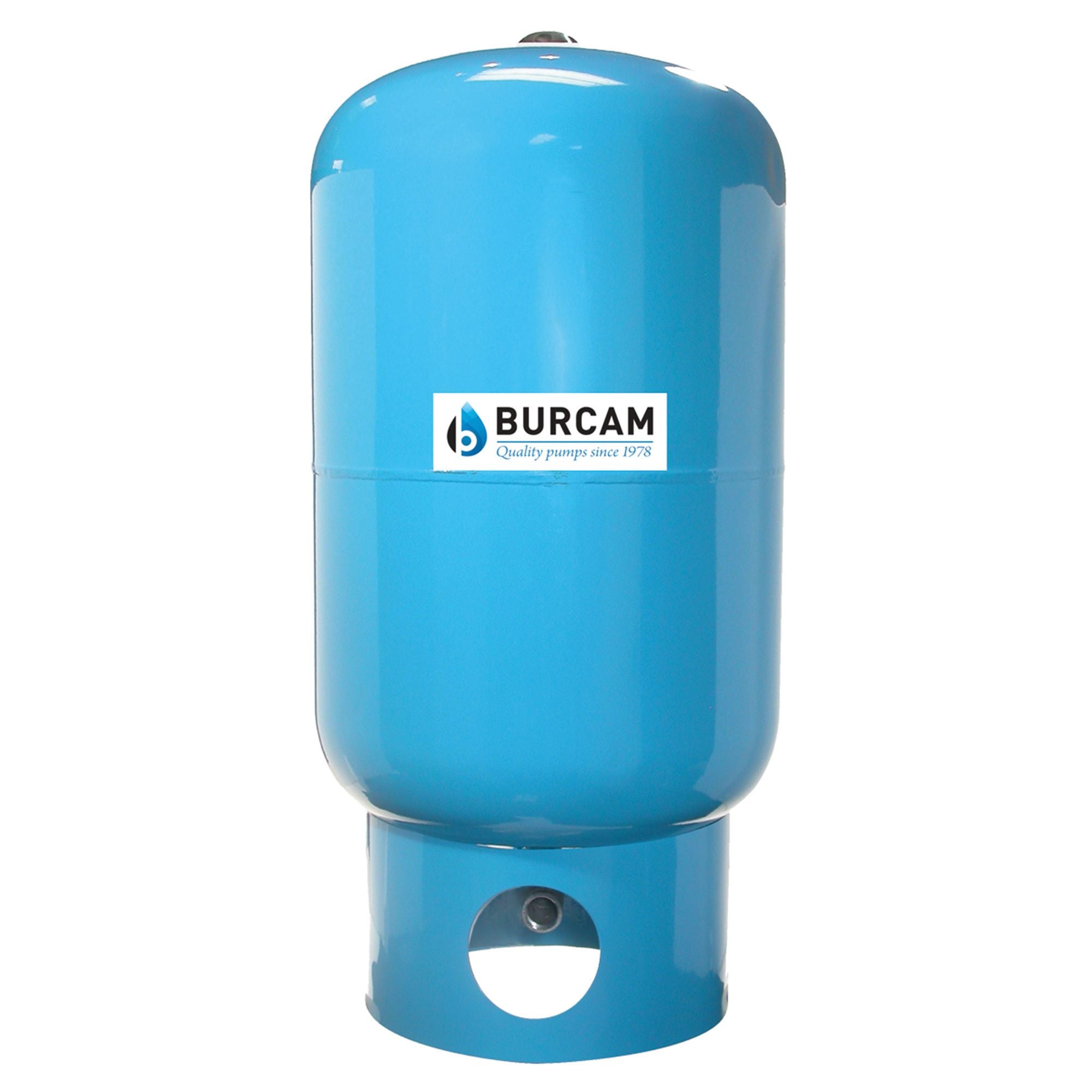

100 l (26 gal) Captive air pressure tank
BMR Code
067-9280
Part number
600546B
UPC
772910605469
This tank is designed to maintain the water pressure in a residential water pump system when the pump is not in operation.
*The price and inventory of products offered on the website may vary. The price may differ from an advertised price due to varying conditions in different markets, errors or situations beyond our control.
100 l (26 gal) Captive air pressure tank.
• Designed for water systems assembled with a jet pump or a deep well submersible pump
• Replaceable bladder made of synthetic butyl rubber to increase reliability and life span
• No water to metal contact for rust-free operation
• Stainless steel flange with 1 in NPT connection
• 100 psi maximum working pressure
• For use a 20/40 psi pressure switch, the air pressure must be adjusted to 18 psi; for a 30/50 psi switch, the pressure must be adjusted to 28 psi
• Drawdown 8.8 US gal (20/40 psi); 7.0 US gal (30/50 psi).
| Brand | BURCAM |
|---|---|
| Capacity | 10 gal |
| Depth | 18 in |
| Dimension | 18 in x 34 in x 18 in |
| Height | 34 in |
| Volume | 26 gal |
| Width | 18 in |
